LED Pilot Lights

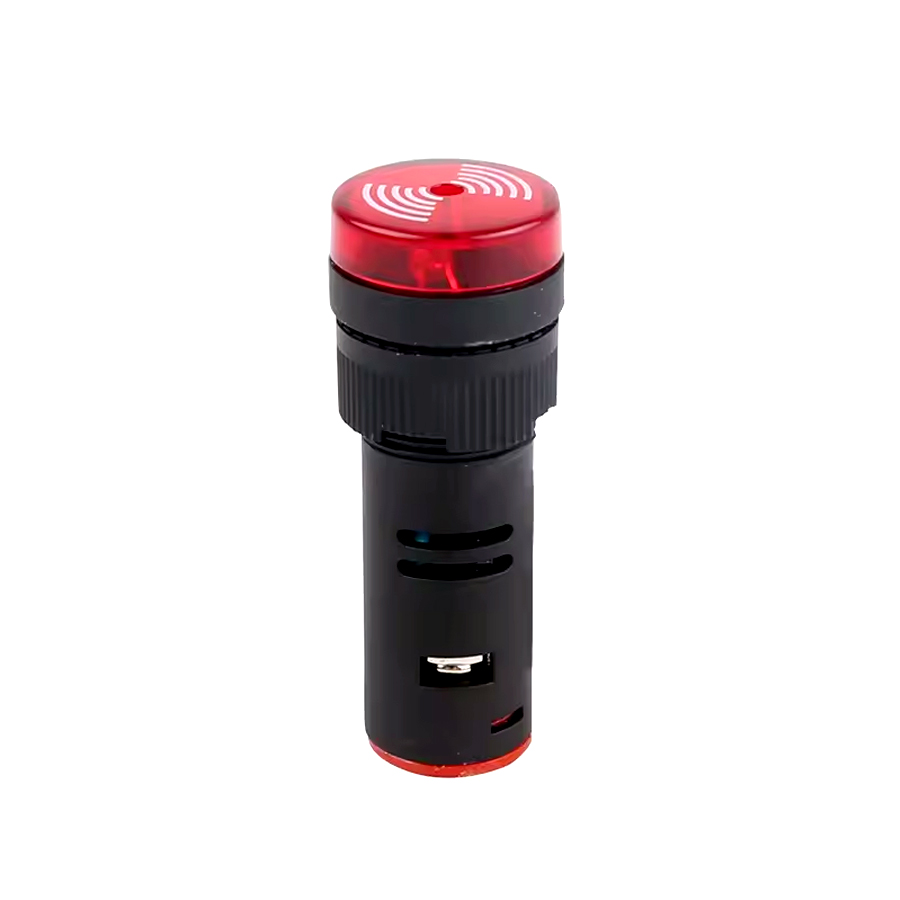

16mm Ø BUZZER
Features
- Ø22.5mm dia cutout
- Voltages Available 230VAC, 12VDC, 24VDC
- CE Mark in all Products
TECHNICAL SPECIFICATION
| Rated Voltage | 230VAC, 12VDC, 24VDC |
| Operating Voltage | -20% to +10% of rated voltage |
| Rated Working Current | ≤ 20mA max |
| Voltage Fluctuation Range | +20% (above 110V) |
| Operating Frequency | 50/60 Hz |
| Insulation Resistance | Ui ≤ 60V5MΩ |
| Withstand Voltage | 2.5KV (AC effective value) 1min. |
| Continues Working Life | ≥ 3,0000Hrs |
| Brightness | ≤ 100cd/m² |
OTHER SPECIFICATION
| Degree of Protection | IP20 |
|
Confirming of Standard |
IEC60947-5-1 |
| EN60947-5-1 |
| MODEL | COLOUR | VOLTAGE |
| LB16-A230-R | RED | 230VAC |
| LB16-D24-R | RED | 24VDC |
| LB16-D12-R | RED | 12VDC |
