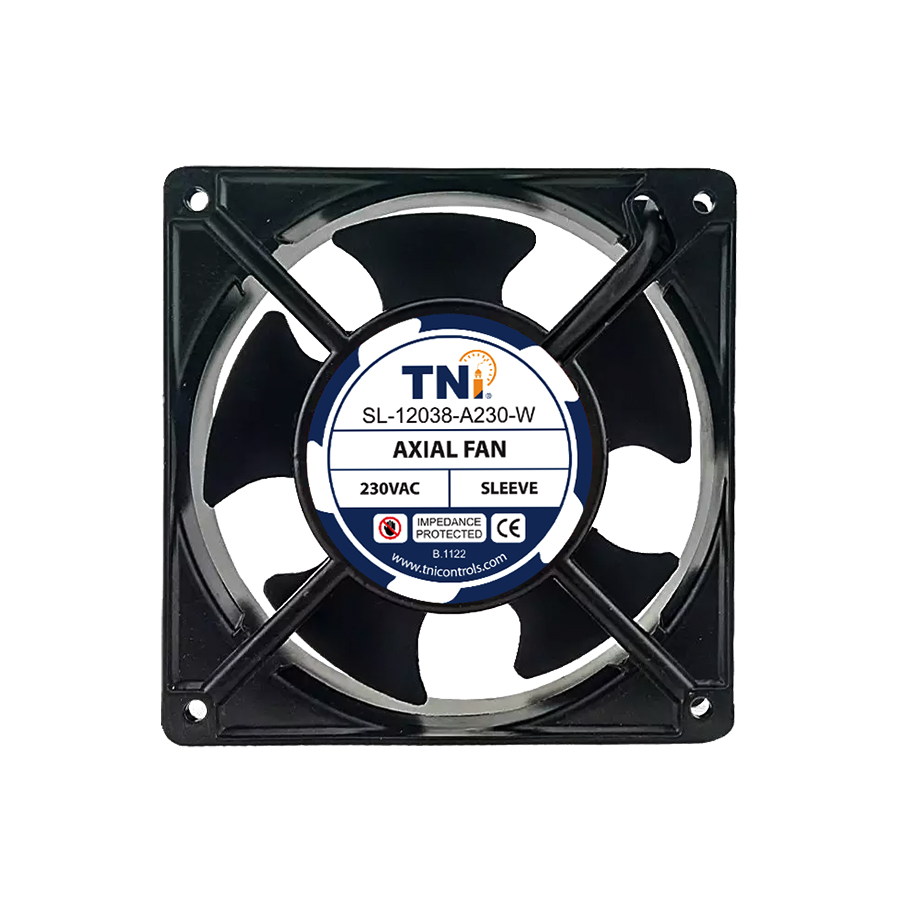

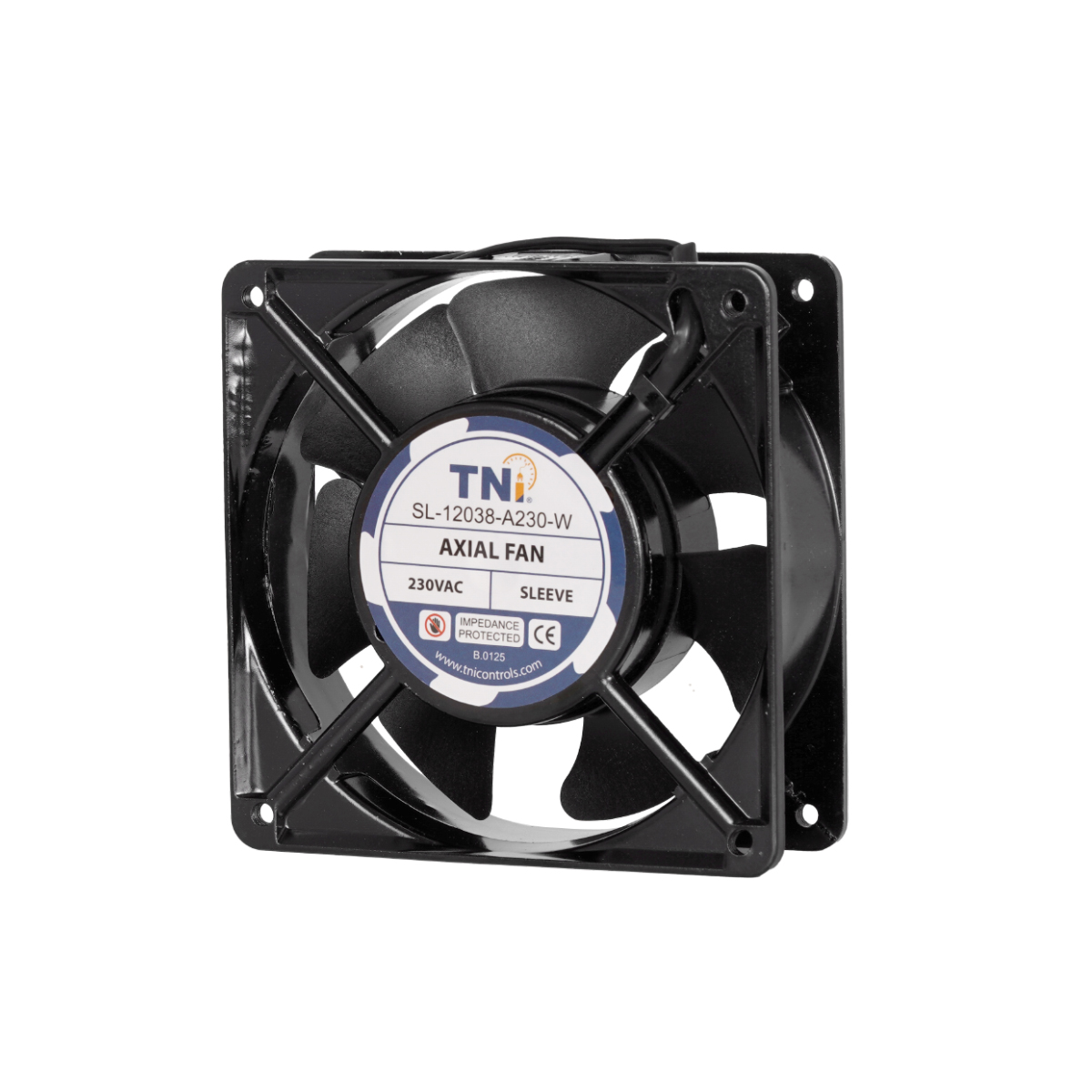

Axial Fan
SL-12038
Features
- High-effciency Air Performance
- Reliable Structural Design
- Convenient and Flexible Installation
- CE Marked on all Models
GENERAL SPECIFICATION
| Bearing Type | Sleeve Bearing | |
| Fan Type | Square | |
| Voltage | 230VAC | |
| Frequency | 50/60Hz | |
| Current Amp | 0.14Amp | |
| Power | 21 | |
| Speed R/min | 2600/2800 | |
| Noise DB(A) | 43/48 | |
|
Air Flow |
m³ / min | 138/162 |
| CFM | 82/95 | |
|
Material |
Impeller: Metal | |
| Frame: Aluminum Alloy | ||
| Lead Wire | UL Type | |
| Operation Temperature | -100C - 650C, 35% - 85%RH | |
| Storage Temperature | -400C - 700C , 35% - 85%RH | |
| MODEL | TYPE | BEARING | VOLTAGE |
| SL-12038-A230-W | SQUARE | SLEEVE BEARING | 230V AC |
| BB-12038-A230-W | SQUARE | BALL BEARING | 230V AC |
