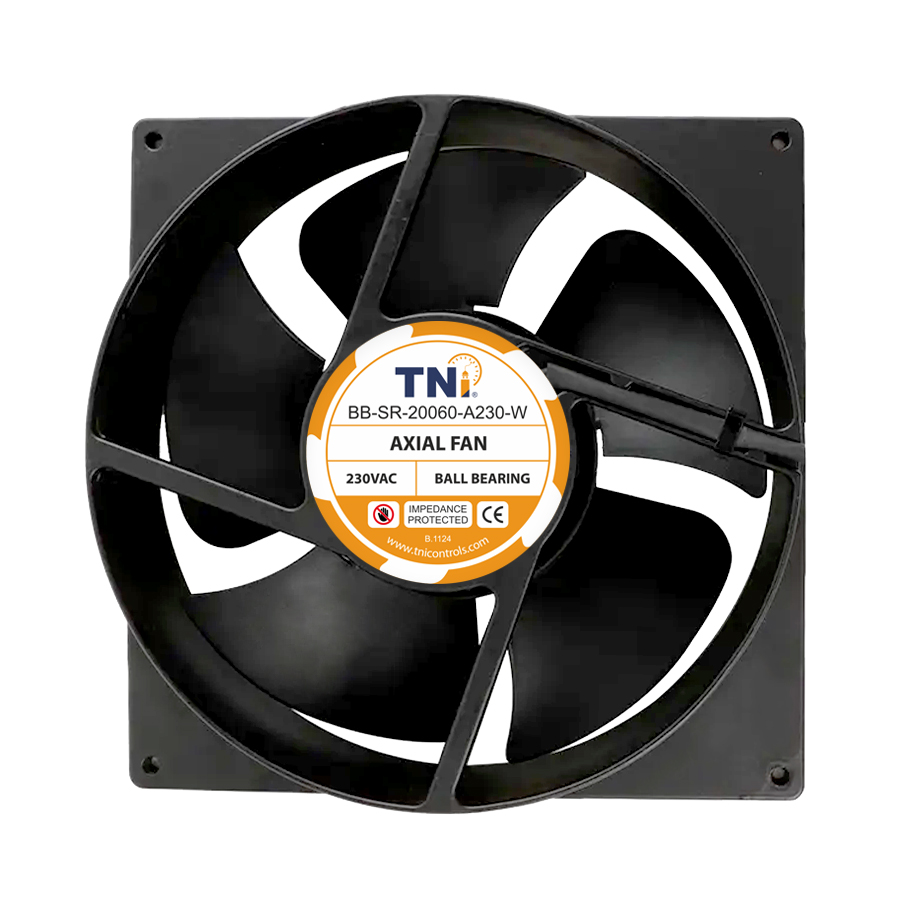

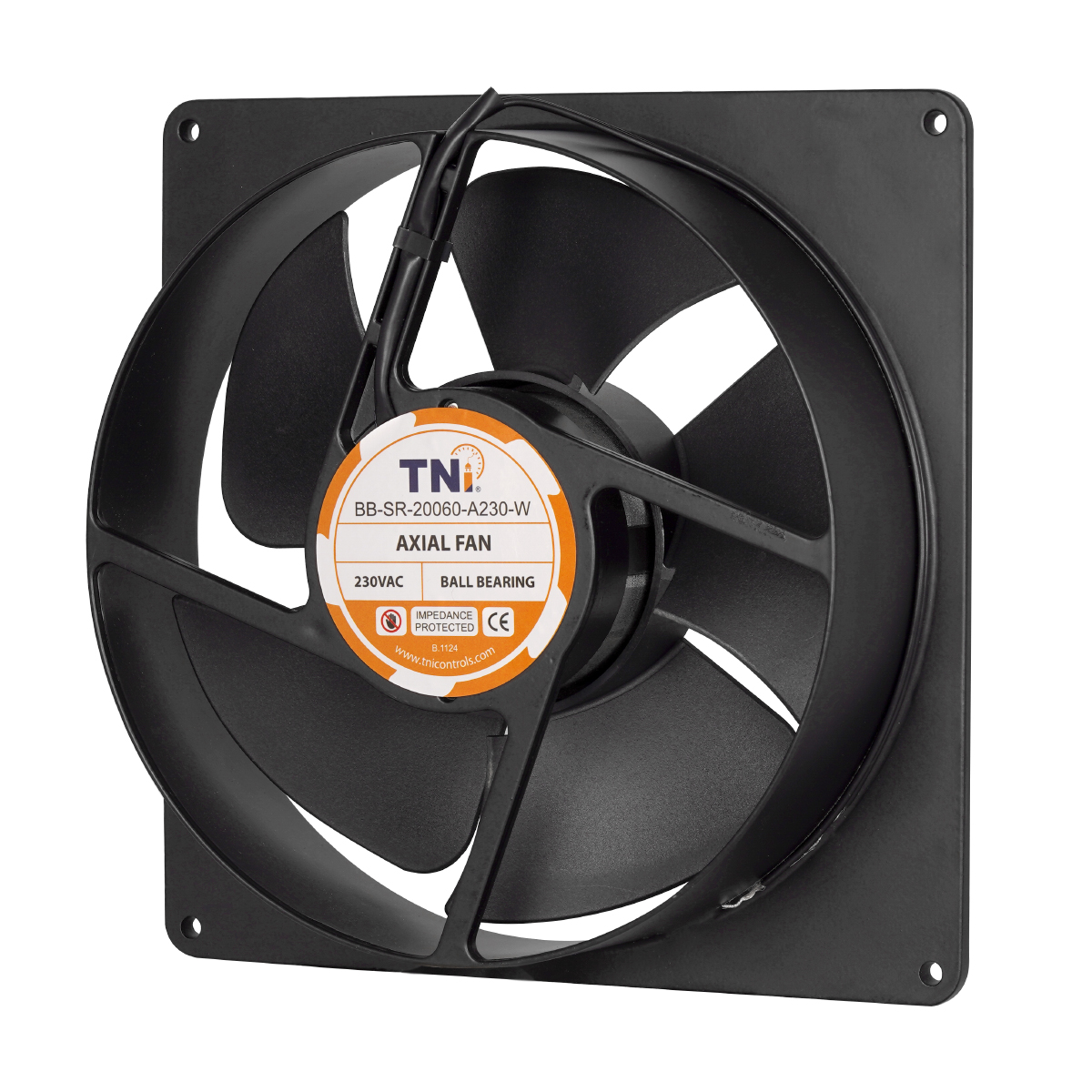

Axial Fan
BB-SR-20060-A230-W
Features
- High-effciency Air Performance
- Reliable Structural Design
- Convenient and Flexible Installation
- CE Marked on all Models
GENERAL SPECIFICATION
| Bearing Type | Ball Bearing | |
| Fan Type | Square Round | |
| Voltage | 230VAC | |
| Frequency | 50/60Hz | |
| Current Amp | 0.45/0.40 | |
| Power | 72/50 | |
| Speed R/min | 2350/2500 | |
| Noise DB(A) | 64/66 | |
| Pressure (MMH2O) | 17/19 | |
| CFM | 335/350 | |
|
Material |
Impeller: Plastic | |
| Frame: Aluminum Alloy | ||
| Lead Wire | UL Type | |
| Operation Temperature | -100C - 650C, 35% - 85%RH | |
| Storage Temperature | -400C - 700C , 35% - 85%RH | |
| MODEL | TYPE | BEARING | VOLTAGE |
| BB-20060-A230-W | SQUARE | BALL BEARING | 230V AC |
| BB-SR-20060-A230-W | SQUARE - ROUND | BALL BEARING | 230V AC |
| BB-22060-A230-W | ROUND | BALL BEARING | 230V AC |
