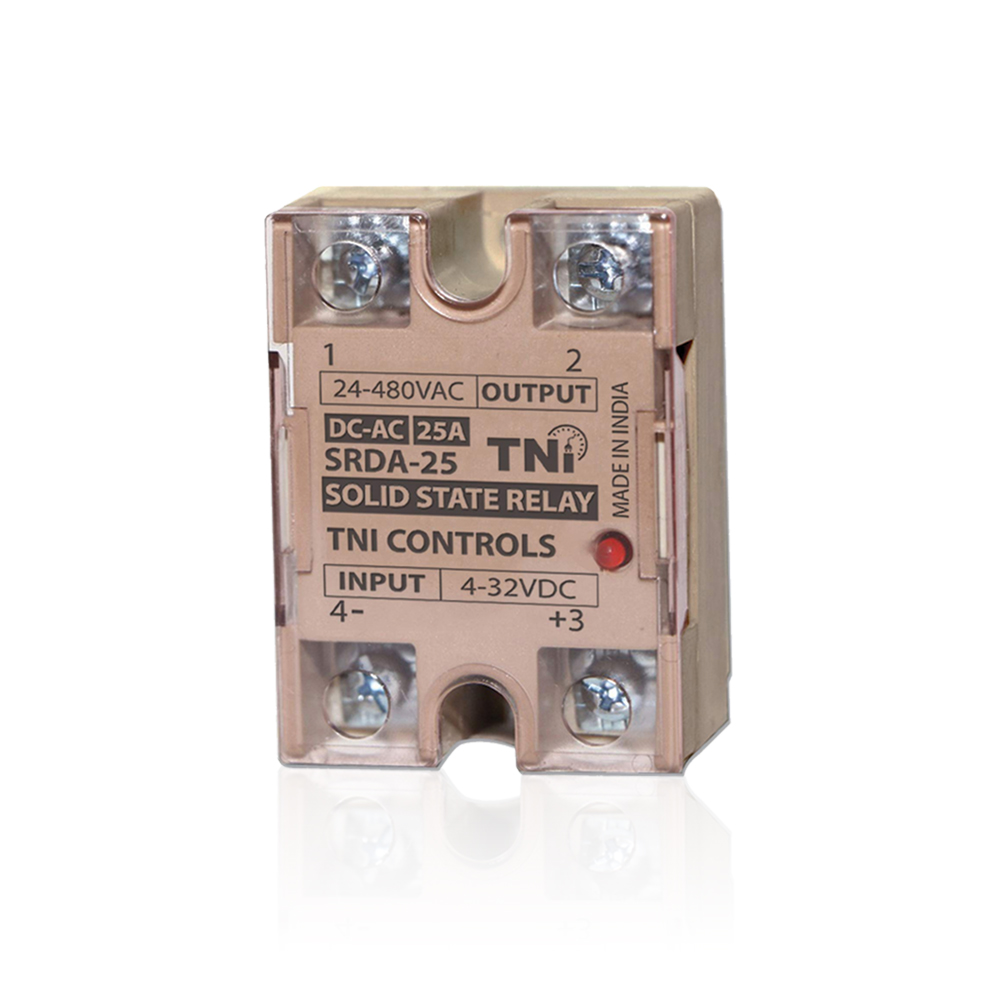

Solid State Relay
DC-AC SSR
Features
- Compact, Slim-Profile Design
- LED Indicator Enables Monitoring Operation
- Zero Cross For a Wide Range of Application
- Build-in Snubber, Effectively Absorbs External Surge
- Protective Cover For Greater Safety
- Surface Mounting & DIN Rail Mounting with Heat Sin
- 1 Year Warranty
INPUT SPECIFICATIONS
| Rated voltage | 5 to 24VDC |
| Operating voltage | 4 to 32VDC |
| Impedance | 7mA max |
OUTPUT SPECIFICATIONS
| Rated load voltage | 24 to 480VAC | ||
| Load voltage range | 19 to 480VAC | ||
| Voltage Tolerance | Model | With Heat Sink | Without Heat sink |
| SRDA-16 | 0.1 to 16A (at 400C) | 0.1 to 3A (at 400C) | |
| SRDA-25 | 0.1 to 25A (at 400C) | 0.1 to 4A (at 400C) | |
| SRDA-40 | 0.1 to 40A (at 400C) | 0.1 to 6A (at 400C) | |
| VDRM, VCEO Reference Value | 600 V (VDRM) | ||
| Inrush Current | SRDA-16 | 150A (60Hz, 1 Cycle) | |
| SRDA-25 | 220A (60Hz, 1 Cycle) | ||
| SRDA-40 | 440A (60Hz, 1 Cycle) | ||
CHARACTERISTICS
| Operation Time | 1/2 of load power source cycle 1ms max. |
| Release Time | 1/2 of load power source cycle 1ms max. |
| Output ON Voltage Drop | 1.6V (RMS) max. |
| Leakage Current | 5mA max. (at 100 VAC) |
| 10mA max. (at 200 VAC) | |
| Insulation Resistance | 100MΩ min. (at 500 VDC) |
| Vibration Resistance | Destruction: 10 to 55, 10Hz, 0.75mm [Single Amplitude (1.5mm Double Amplitude)] |
| Shock Resistance | Destruction: 1,000 m/s2 |
| Ambient Temperature | Operating: -300C to 800C (with no icing or condensation) |
| Storage: -300C to 1000C (with no icing or condensation) | |
| Ambient Humidity | Operating: 45% to 85% |
HEATSINK RECOMMENDATIONS
| We recommend that Solid State Relay modules be mounted to a heatsink sufficient to maintain the module’s base temperature at less than 850C under worst case ambient temperature and load conditions. | |
| The heatsink mounting surface should be a smooth (30-40 micro-inch finish), flat (30-40 micro-inch flatness across mating area), un-painted surface which is clean and free of oxidation. |
|

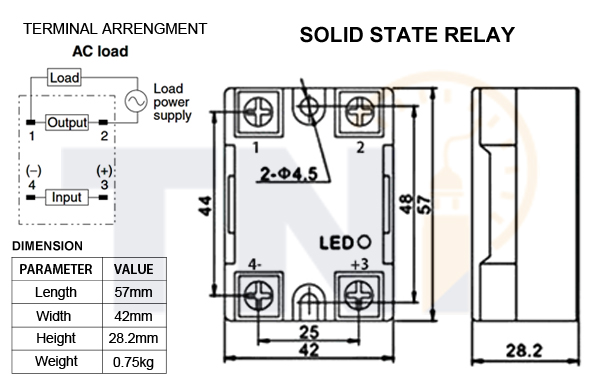

| An even coating of thermal compound (Dow Corning DC340 or equivalent) should be applied to both the heatsink and module mounting surfaces and spread to a uniform depth of .002” to eliminate all air pockets. | |
| The module should be mounted to the heatsink using two M3 screws. |
| MODEL | INPUT VOLTAGE |
OUTPUT VOLTAGE |
RATED CURRENT |
| SRDA-16 | DC | AC | 16A |
| SRDA-25 | DC | AC | 25A |
| SRDA-40 | DC | AC | 40A |
