LED Pilot Lights

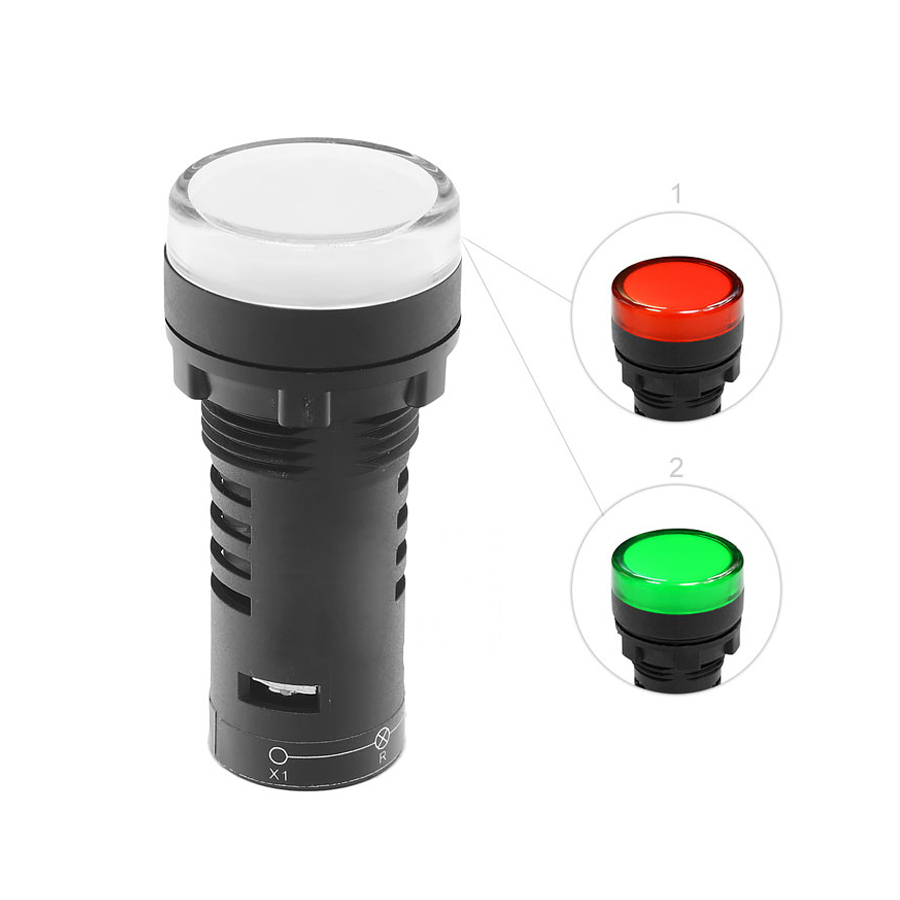

22.5mm Ø DUAL LED

Features
  • Ø22.5mm dia cutout
  • All Colors Red, Green, Yellow, Blue, White And Amber Available
  • Voltages Available 230VAC, 110VAC, 24VDC
  • CE Mark in all Products
  •
  • Colour: Green
    (PRODUCT) REDBlueGreenMidnightPinkStarlight
  • Specification
  • Order Code
  • Dimension

TECHNICAL SPECIFICATION

 Rated Voltage  230VAC, 110VAC, 24VDC
 Operating Voltage   -20% to +10% of rated voltage
 Rated Working Current   ≤ 20mA max
 Voltage Fluctuation Range  +20% (above 110V)
 Operating Frequency  50/60 Hz
 Insulation Resistance   Ui ≤ 60V5MΩ
 Withstand Voltage  2.5KV (AC effective value) 1min.
 Continues Working Life  ≥ 3,0000Hrs
 Brightness  ≤ 100cd/m²

OTHER SPECIFICATION

 Degree of Protection   IP20

 Confirming of Standard

 IEC60947-5-1
 EN60947-5-1

MODEL  COLOUR VOLTAGE
DLP22-A230-RG RED+GREEN 230V AC
DLP22-D24-RG RED+GREEN 24V DC
