LED Pilot Lights

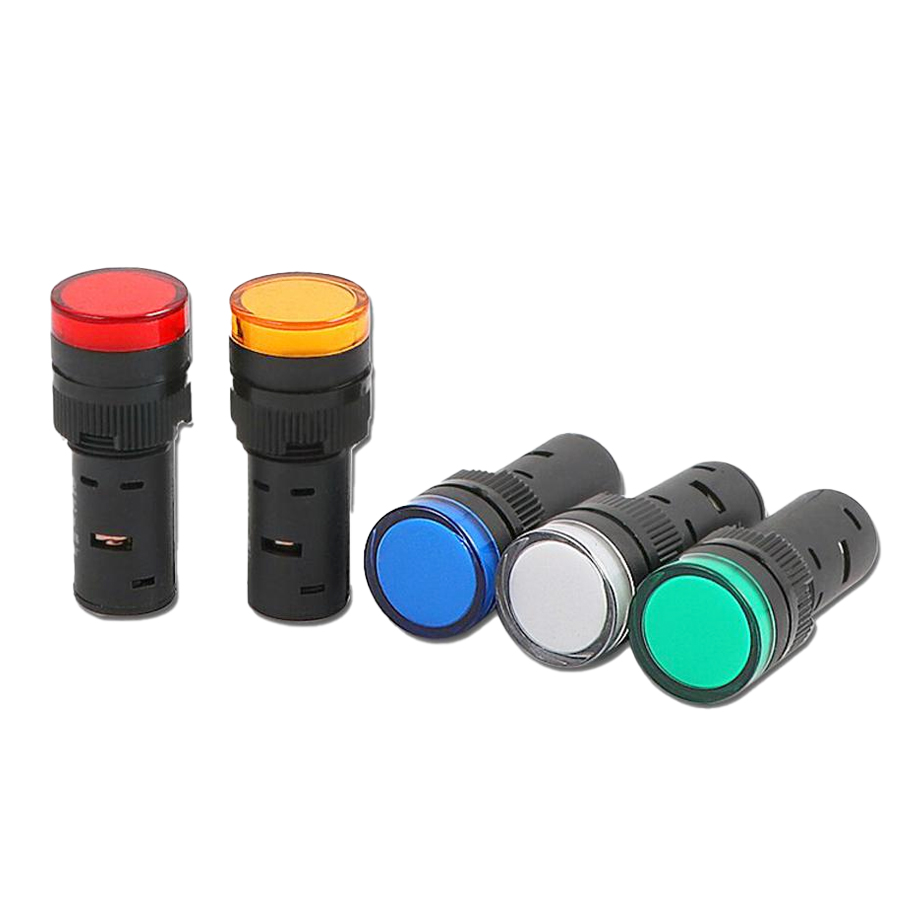

16mm Ø LED LIGHT

Features
  • Ø16mm dia cutout
  • All Colors Red, Green, Yellow, Blue, White And Amber Available
  • Voltages Available 230VAC & 24VDC
  • CE Mark in all Products
  • Specification
  • Order Code
  • Dimension

TECHNICAL SPECIFICATION

 Rated Voltage  230VAC & 24VDC
 Operating Voltage   -20% to +10% of rated voltage
 Rated Working Current   ≤ 20mA max
 Voltage Fluctuation Range  +20% (above 110V)
 Operating Frequency  50/60 Hz
 Insulation Resistance   Ui ≤ 60V5MΩ
 Withstand Voltage  2.5KV (AC effective value) 1min.
 Continues Working Life  ≥ 3,0000Hrs
 Brightness  ≤ 100cd/m²

OTHER SPECIFICATION

 Degree of Protection   IP20

 Confirming of Standard

 IEC60947-5-1
 EN60947-5-1

MODEL  COLOUR VOLTAGE
 LP16-A230-R  RED





 230V AC

LP16-A230-G GREEN
LP16-A230-Y YELLOW
LP16-A230-B BLUE
LP16-A230-W WHITE
LP16-A230-A AMBER
LP16-D24-R RED





24V DC

LP16-D24-G GREEN
LP16-D24-Y YELLOW
LP16-D24-B BLUE
LP16-D24-W WHITE
LP16-D24-A AMBER
