LED Pilot Lights

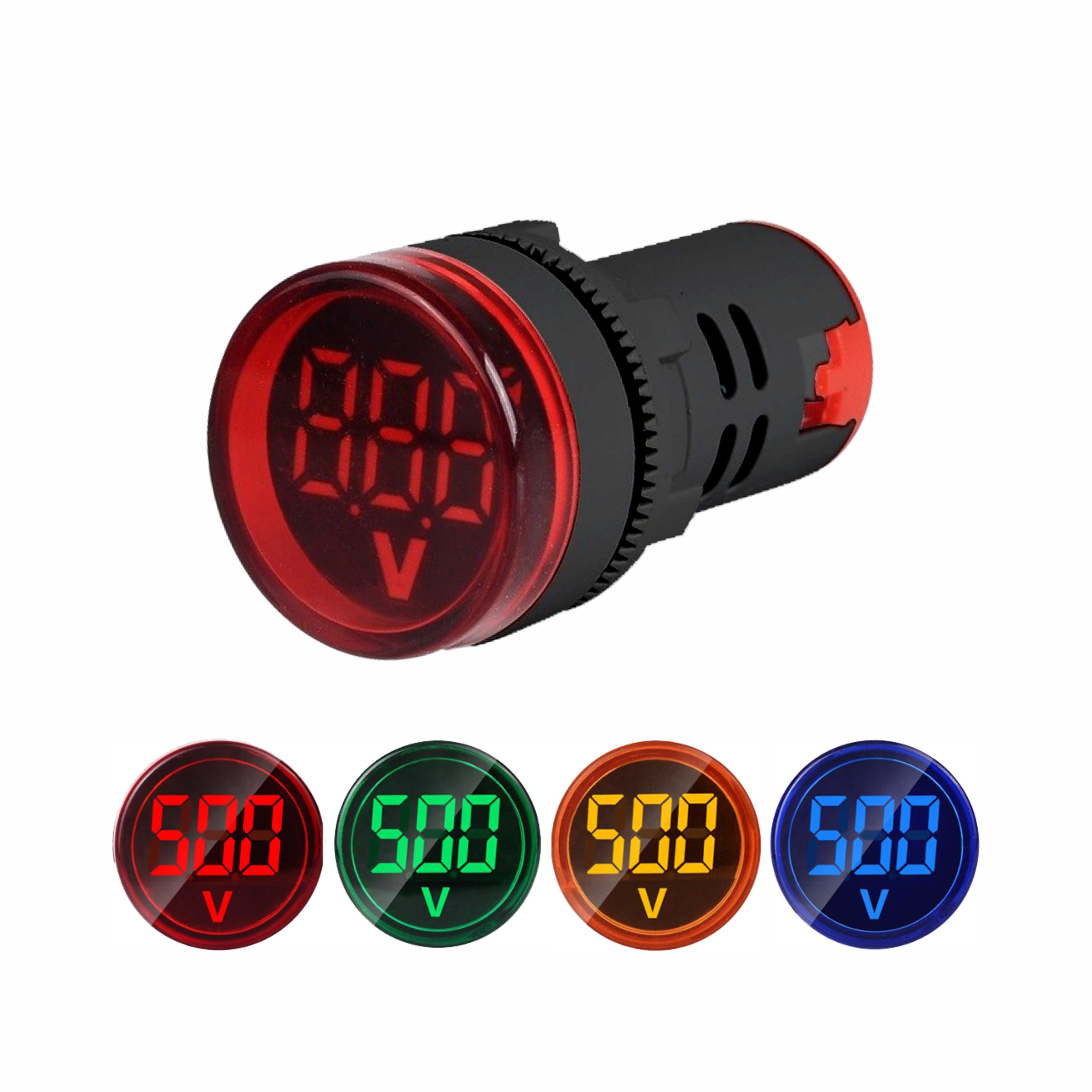

22.5mm Ø VOLT METER
Features
- Ø22.5mm dia cutout
- All Colors Red, Green, Yellow & Blue Available
- Voltages Available 20-500VAC
- CE Mark in all Products
TECHNICAL SPECIFICATION
| Rated Voltage | 0-500V AC |
| Operating Voltage | -20% to +10% of rated voltage |
| Rated Working Current | ≤ 20mA max |
| Voltage Fluctuation Range | +20% (above 110V) |
| Operating Frequency | 50/60 Hz |
| Insulation Resistance | Ui ≤ 60V5MΩ |
| Withstand Voltage | 2.5KV (AC effective value) 1min. |
| Continues Working Life | ≥ 3,0000Hrs |
| Brightness | ≤ 100cd/m² |
OTHER SPECIFICATION
| Degree of Protection | IP20 |
|
Confirming of Standard |
IEC60947-5-1 |
| EN60947-5-1 |
| MODEL | COLOUR | VOLTAGE |
| LV22-A230-R | RED |
20-500V AC |
| LV22-A230-G | GREEN | |
| LV22-A230-Y | YELLOW | |
| LV22-A230-B | BLUE |
