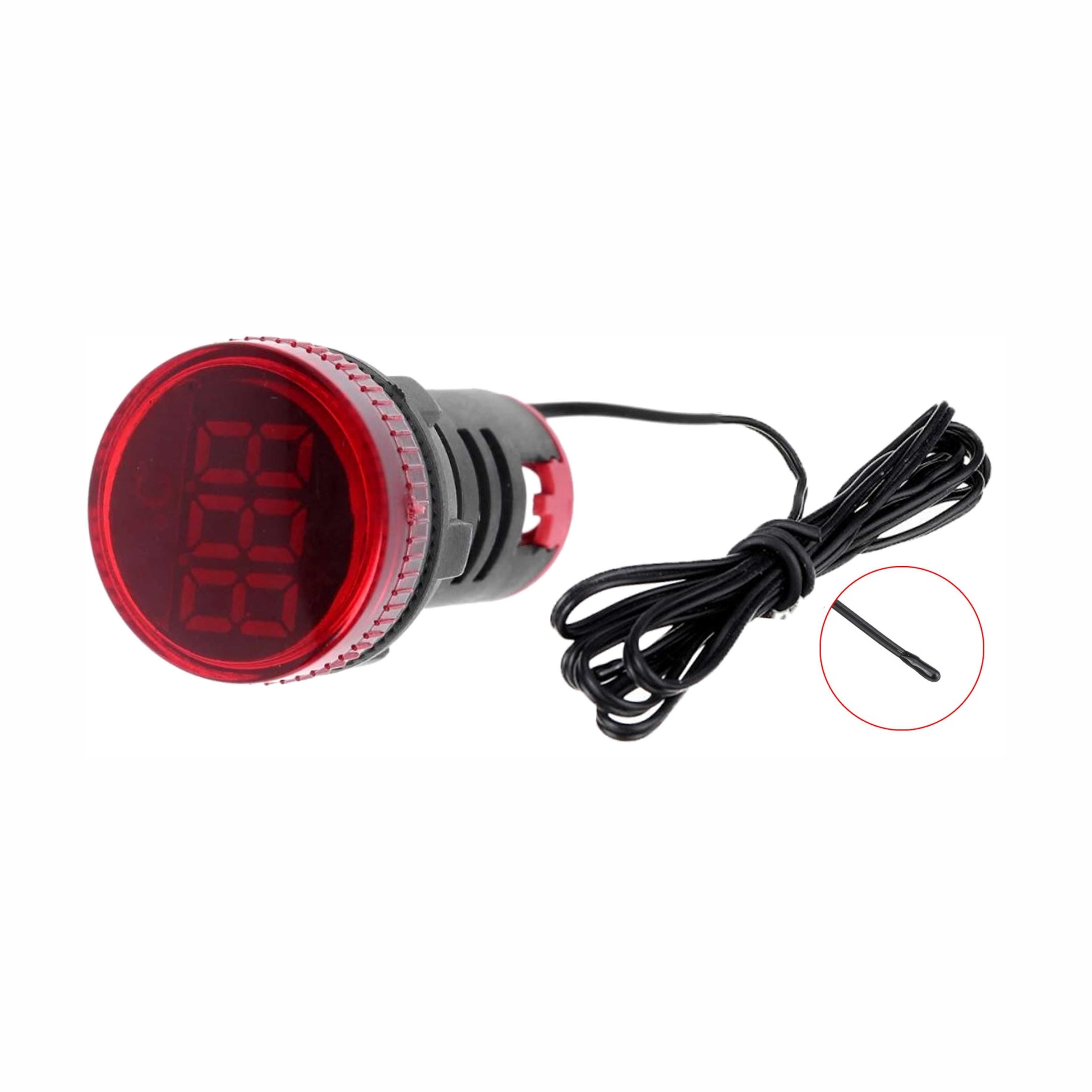

LED Pilot Lights
22.5mm Ø TEMPERATURE
Features
- Ø22.5mm dia cutout
- CE Mark in all Products
TECHNICAL SPECIFICATION
| Rated Temperature | 0-1990C |
| Operating Voltage | -20% to +10% of rated voltage |
| Rated Working Current | ≤ 20mA max |
| Voltage Fluctuation Range | +20% (above 110V) |
| Operating Frequency | 50/60 Hz |
| Insulation Resistance | Ui ≤ 60V5MΩ |
| Withstand Voltage | 2.5KV (AC effective value) 1min. |
| Continues Working Life | ≥ 3,0000Hrs |
| Brightness | ≤ 100cd/m² |
OTHER SPECIFICATION
| Degree of Protection | IP20 |
|
Confirming of Standard |
IEC60947-5-1 |
| EN60947-5-1 |
| MODEL | COLOUR | TEMPERATURE |
| LT22-199-R | RED | 0-1990C |
