Sensors

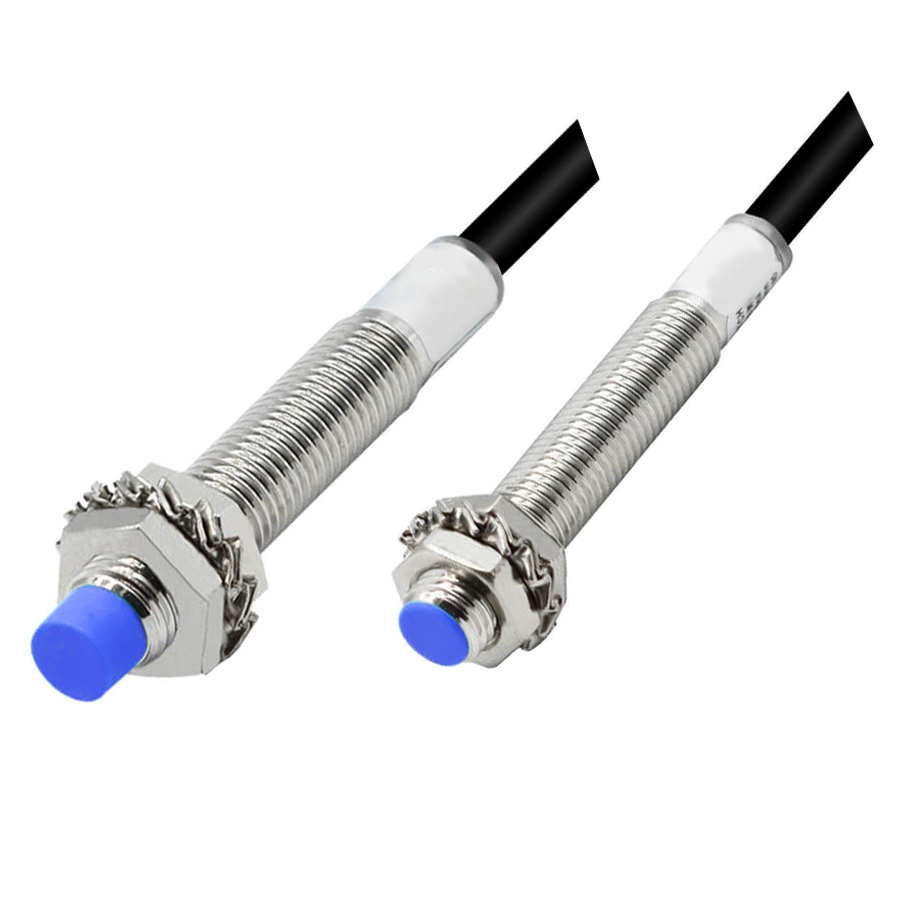

M08-DC INPUT
Features
- PROTECTION: Short-circuit, Surge Absorber, Reverse connection
- Red Led Display Can Detect Sensor Work Status
- Easy To Set Up And Adjust Distance
- Waterproof, Anti Oil, Temperature And Other Advantages
- IP67 Protection Structure (IEC Specication)
GENERAL CHARACTERISTIC
| PARAMETERS | MOUNTING | NPN | PNP |
|
Detection Distance |
Non-Flush | 2mm ± 10% | |
| Flush | 1.5mm ± 10% | ||
|
Frequency (Hz) |
Non-Flush |
800Hz |
|
| Flush | |||
| Movement Differential | Max.10% of detecting distance | ||
| Standard Detected Object | Iron 8x8x1mm | ||
OPERATING CHARACTERISTICS
| Supply Voltage (V) | 12-24VDC (5-30VDC) | ||
| Current Consumption (mA) | 12mA max. | ||
| Load Current (mA) | 200mA max. | ||
| Voltage Drop (Vp) | 1.5V max. | ||
ENVIRONMENT
| Operating Temperature | -250C - 700C (non-freezing condition) | ||
| Ambient Humidity | 35% - 95% RH | ||
| Insulation Resistance | Min. 50MΩ/500VDC | ||
| Dielectric Strength | 1500VAC 50/60Hz for 1 minute | ||
OTHER CHARACTERISTIC
| Indicator | Operating: RED LED | ||
|
Material |
Case | Brass | |
| Detecting Surface | ABS | ||
| Connection Mode | 2M lead wire type | ||
| Protection Grade | IP67 (IEC Specification) | ||
PROTECTION & SECURITY
| Protection Circuit | Reverse Polarity Protection, Surge Absorber, Short Circuit Protection | ||
| Vibration | 1mm amplitude at 10-55Hz for 120 min. each in X, Y, Z direction | ||
| Shock | 500m/s2 (50G) for 3 times in X,Y, Z direction | ||

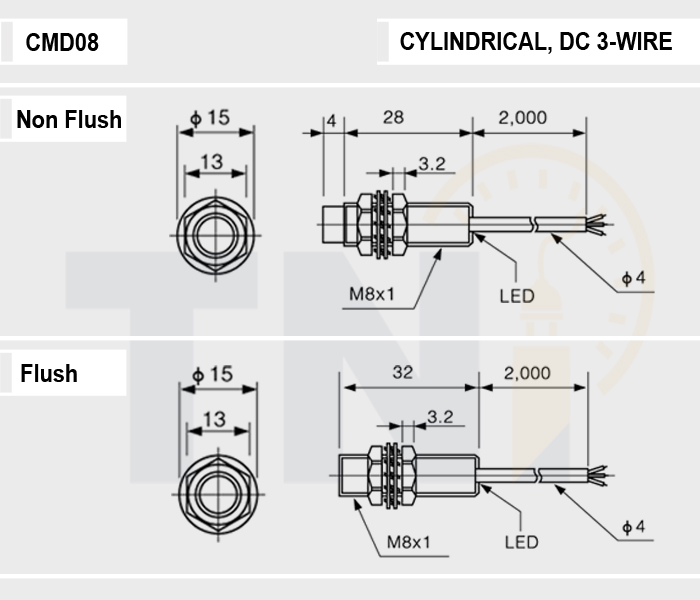

| MODEL | TYPE | LOGIC | OUTPUT | MOUNT | RANGE |
| CMD08-P2-O |
DC |
PNP |
NO |
NON FLUSH |
2mm |
| CMD08-N2-O | NPN | 2mm | |||
| CMD08-P1.5-O | PNP |
FLUSH |
1.5mm | ||
| CMD08-N1.5-O | NPN | 1.5mm |
