Sensors

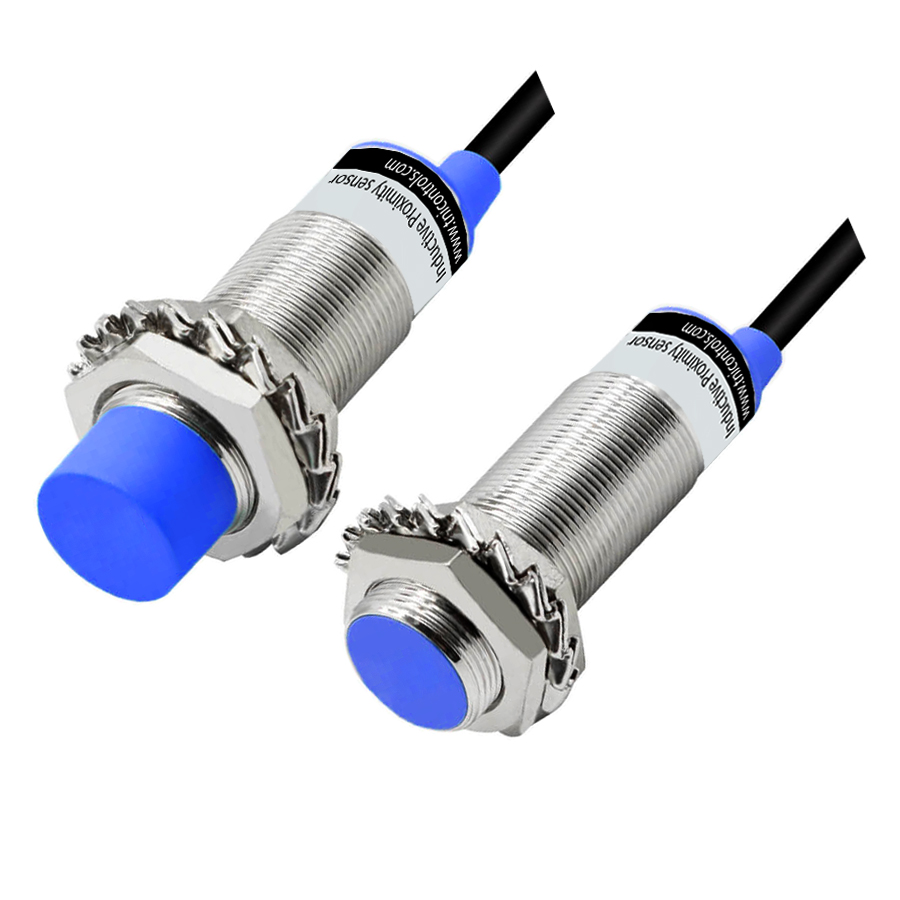

M18-DC INPUT
Features
- PROTECTION: Short-circuit, Surge Absorber, Reverse connection
- Red Led Display Can Detect Sensor Work Status
- Easy To Set Up And Adjust Distance
- Waterproof, Anti Oil, Temperature And Other Advantages
- IP67 Protection Structure (IEC Specication)
GENERAL CHARACTERISTIC
| PARAMETERS | MOUNTING | NPN | PNP | |
|
Detecting Distance |
Non-Flush | 8mm |
||
| Flush | 5mm |
|||
|
Frequency (Hz) |
Non-Flush | 200Hz | ||
| Flush | 300Hz | |||
| Movement Differential | Max.10% of detecting distance | |||
| Standard Detected Object | Iron 18x18x1mm | |||
OPERATING CHARACTERISTICS
| Supply Voltage (V) | 12-24VDC (5-30VDC) | ||
| Current Consumption (mA) | 12mA max. | ||
| Load Current (mA) | 200mA max. | ||
| Voltage Drop (Vp) | 1.5V max. | ||
ENVIRONMENT
| Operating Temperature | -250C - 700C (non-freezing condition) | ||
| Ambient Humidity | 35% - 95% RH | ||
| Insulation Resistance | Min. 50MΩ/500VDC | ||
| Dielectric Strength | 1500VAC 50/60Hz for 1 minute | ||
OTHER CHARACTERISTIC
| Indicator | Operating: RED LED | ||
|
Material |
Case | Brass | |
| Detecting Surface | ABS | ||
| Connection Mode | 2M lead wire type | ||
| Protection Grade | IP67 (IEC Specification) | ||
PROTECTION & SECURITY
| Protection Circuit | Reverse Polarity Protection, Surge Absorber, Short Circuit Protection | ||
| Vibration | 1mm amplitude at 10-55Hz for 120 min. each in X, Y, Z direction | ||
| Shock | 500m/s2 (50G) for 3 times in X,Y, Z direction | ||
| MOUNT | MODEL | TYPE | LOGIC | OUTPUT | RANGE |
|
NON-FLUSH |
CMD18-P8-O |
DC |
PNP |
NO |
8mm |
| CMD18-P8-C | NC | ||||
| CMD18-P8-OC | NO+NC | ||||
| CMD18-N8-O |
NPN |
NO | |||
| CMD18-N8-C | NC | ||||
| CMD18-N8-OC | NO+NC | ||||
|
FLUSH |
CMD18-P5-O |
PNP |
NO |
5mm |
|
| CMD18-P5-C | NC | ||||
| CMD18-P5-OC | NO+NC | ||||
| CMD18-N5-O |
NPN |
NO | |||
| CMD18-N5-C | NC | ||||
| CMD18-N5-OC | NO+NC |
