Push Button & Actuator
METAL PUSH BUTTON
Features

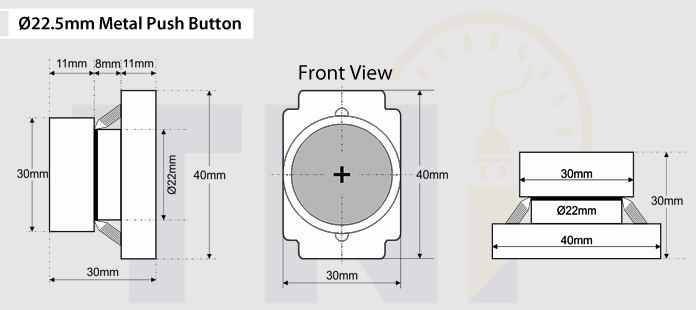

- Ø22.5mm dia cutout
- Comfortable Finger Press Position and Switch Toggle Operation Function

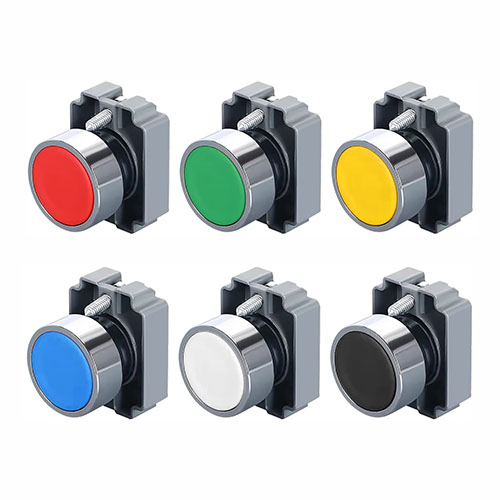

- All Colors Red, Green, Yellow, Blue, White And Black Available
- CE Marked on all Model
TECHNICAL SPECIFICATION
| Ambient Temperature | -250C to 550C |
| Vibration Resistance | <500Hz, Amplitude about 1.0mm |
| Impact Resistance | ≥ 10g |
| Operating Frequency | 50/60 Hz |
| Contact Action | NO/NC (NC Contact is Directly Disconnected) |
|
Mechanical Life |
Button: More than 1 Million time |
| Head: 100000 time | |
| Electric Life | AC more than 100000 time |
PROTECTION
| Standard Compliance | GB 14048.5-2008, IEC 60947-5-1 |
| Degree of Protection | IP65 |
| MODEL | COLOUR |
| AM22-R | RED |
| AM22-G | GREEN |
| AM22-Y | YELLOW |
| AM22-B | BLUE |
| AM22-W | WHITE |
| AM22-BK | BLACK |
