Push Button & Actuator
ILLUMINATED PLASTIC
Features
- Ø22.5mm dia cutout
- Available in 230VAC
- Comfortable Finger Press Position and Switch Toggle Operation Function
- All Colors Red, Green, Yellow, Blue, White And Black Available
- CE Marked on all Models
TECHNICAL SPECIFICATION
| Operating Voltage | 230V AC / 24V DC |
| Ambient Temperature | -250C to 550C |
| Vibration Resistance | <500Hz, Amplitude about 1.0mm |
| Impact Resistance | ≥ 10g |
| Operating Frequency | 50/60 Hz |
| Contact Action | NO/NC (NC Contact is Directly Disconnected) |
|
Mechanical Life |
Button: More than 1 Million time |
| Head: 100000 time | |
| Electric Life | AC more than 100000 time |
PROTECTION
| Standard Compliance | GB 14048.5-2008, IEC 60947-5-1 |
| Degree of Protection | IP65 |

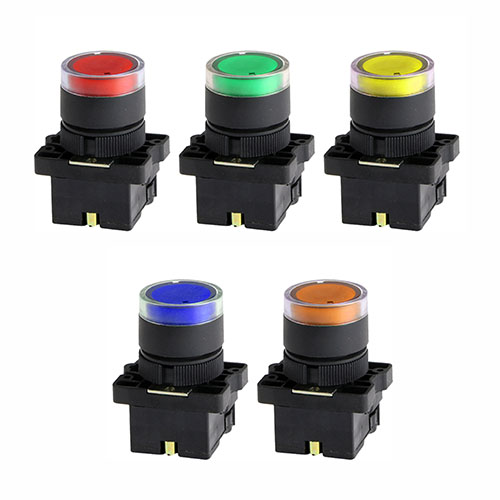

| MODEL | VOLTAGE | COLOUR |
| AP22L-A230-R |
230V AC |
RED |
| AP22L-A230-G | GREEN | |
| AP22L-A230-Y | YELLOW | |
| AP22L-A230-B | BLUE | |
| AP22L-A230-A | AMBER |
