Push Button & Actuator

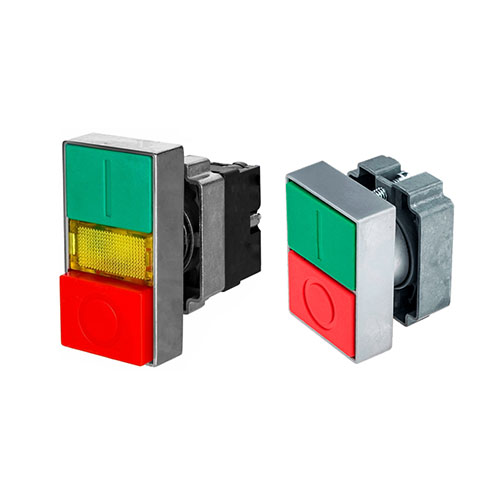

TWIN PUSH BUTTON
Features
- Ø22.5mm dia cutout
- Available in 230VAC
- Comfortable Finger Press Position and Switch Toggle Operation Function
- All Colors Red, Green, Yellow, Blue, White And Black Available
- CE Marked on all Models
TECHNICAL SPECIFICATION
| Operating Voltage | 230V AC |
| Ambient Temperature | -250C to 550C |
| Vibration Resistance | <500Hz, Amplitude about 1.0mm |
| Impact Resistance | ≥ 10g |
| Operating Frequency | 50/60 Hz |
| Contact Action | NO/NC (NC Contact is Directly Disconnected) |
|
Mechanical Life |
Button: More than 1 Million time |
| Head: 100000 time | |
| Electric Life | AC more than 100000 time |
PROTECTION
| Standard Compliance | GB 14048.5-2008, IEC 60947-5-1 |
| Degree of Protection | IP65 |

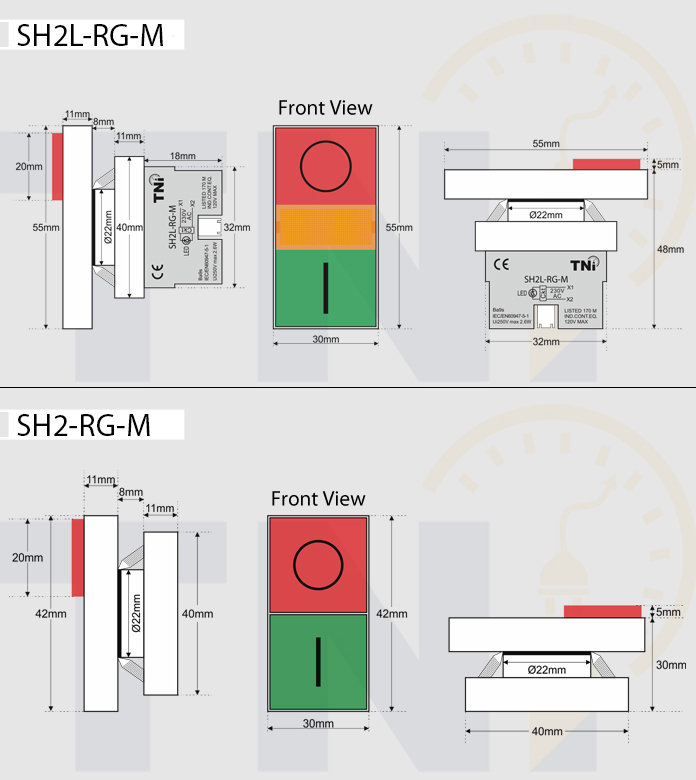

| MODEL | DESCRIPTION | COLOUR |
| SH2-RG-M | FLUSH WITH IO MARK | RED+GREEN |
| SH2L-RG-M | 230V AC ILLUMINATED | RED+GREEN |
