Push Button & Actuator

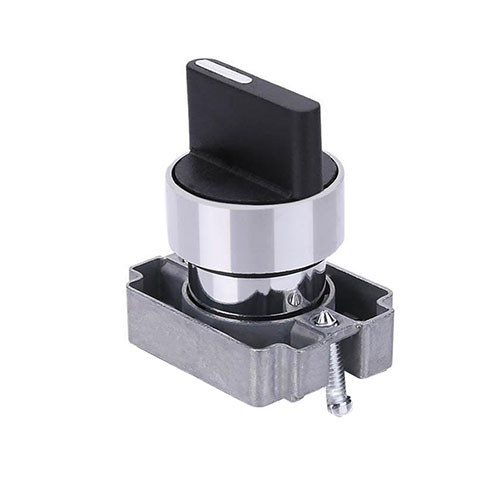

METAL SELECTOR
Features

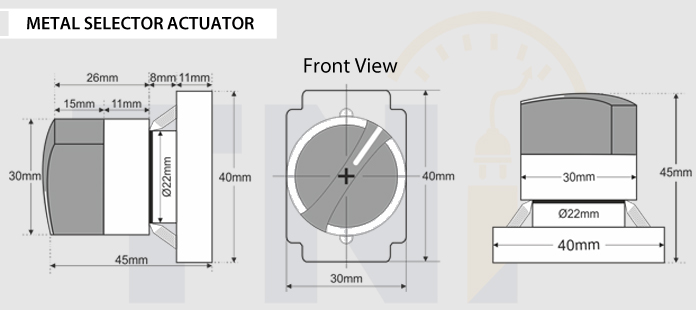

- Ø22.5mm dia cutout
- Available in 2 Position & 3 Position
- Comfortable Finger Press Position and Switch Toggle Operation Function
- CE Marked on all Models
TECHNICAL SPECIFICATION
| Ambient Temperature | -250C to 550C |
| Vibration Resistance | <500Hz, Amplitude about 1.0mm |
| Impact Resistance | ≥ 10g |
| Operating Frequency | 50/60 Hz |
| Contact Action | NO/NC (NC Contact is Directly Disconnected) |
|
Mechanical Life |
Button: More than 1 Million time |
| Head: 100000 time | |
| Electric Life | AC more than 100000 time |
PROTECTION
| Standard Compliance | GB 14048.5-2008, IEC 60947-5-1 |
| Degree of Protection | IP65 |
| MODEL | TYPE | POSITION |
| SA2-BK | STAY PUT | 2 POSITION |
| SA3-BK | STAY PUT | 3 POSITION |
| SA2-SR-BK | SPRING RETURN | 2 POSITION |
| SA3-SR-BK | SPRING RETURN | 3 POSITION |
