Push Button & Actuator

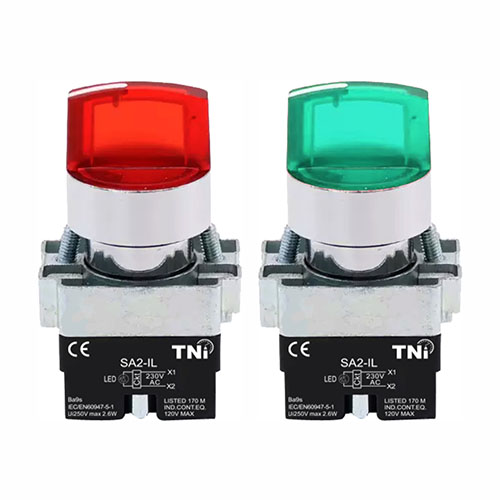

ILLUMINATED SELECTOR
Features
- Ø22.5mm dia cutout
- Available Voltage: 230VAC & 24VDC
- Comfortable Finger Press Position and Switch Toggle Operation Function
- CE Marked on all Models
TECHNICAL SPECIFICATION
| Operating Voltage | 230VAC & 24VDC |
| Ambient Temperature | -250C to 550C |
| Vibration Resistance | <500Hz, Amplitude about 1.0mm |
| Impact Resistance | ≥ 10g |
| Operating Frequency | 50/60 Hz |
| Contact Action | NO/NC (NC Contact is Directly Disconnected) |
|
Mechanical Life |
Button: More than 1 Million time |
| Head: 100000 time | |
| Electric Life | AC more than 100000 time |
PROTECTION
| Standard Compliance | GB 14048.5-2008, IEC 60947-5-1 |
| Degree of Protection | IP65 |
| MODEL | VOLTAGE | POSITION | COLOUR |
| SA2-IL-R | 230VAC | 2 POSITION | RED |
| SA2-ILG | 230VAC | 2 POSITION | GREEN |
| SA3-IL-R | 230VAC | 3 POSITION | RED |
| SA3-IL-G | 230VAC | 3 POSITION | GREEN |
| SA2-IL-D24-R | 24VDC | 2 POSITION | RED |
| SA2-IL-D24-G | 24VDC | 2 POSITION | GREEN |
| SA3-IL-D24-R | 24VDC | 3 POSITION | RED |
| SA3-IL-D24-G | 24VDC | 3 POSITION | GREEN |
