Push Button & Actuator

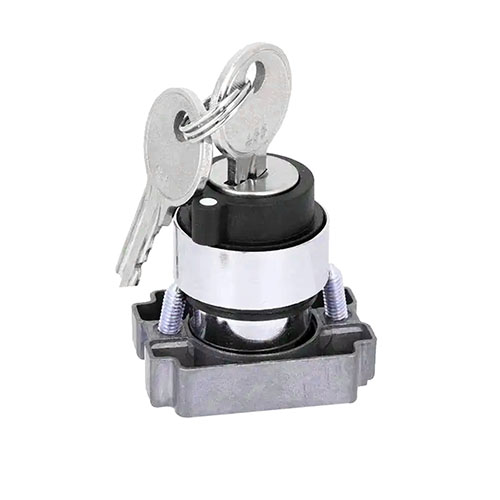

SELECTOR WITH KEY

Features
  • Ø22.5mm dia cutout
  • Available in 2 Position & 3 Position
  • Comfortable Finger Press Position and Switch Toggle Operation Function
  • CE Marked on all Models
  • Specification
  • Order Code

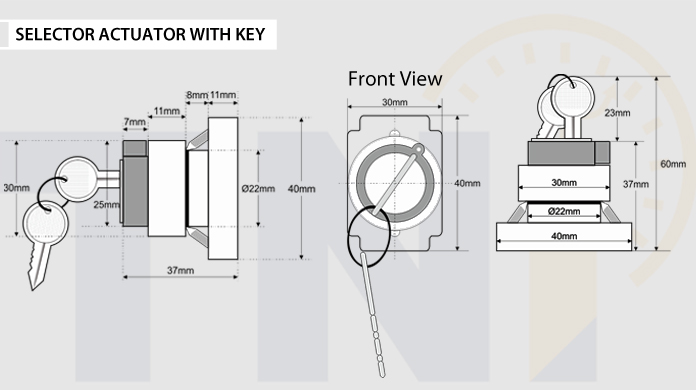

  • Dimension

TECHNICAL SPECIFICATION

 Ambient Temperature  -250C to 550C
 Vibration Resistance   <500Hz, Amplitude about 1.0mm
 Impact Resistance  ≥ 10g
 Operating Frequency  50/60 Hz
 Contact Action  NO/NC (NC Contact is Directly Disconnected)

 Mechanical Life

 Button: More than 1 Million time
 Head: 100000 time
 Electric Life  AC more than 100000 time

PROTECTION

 Standard Compliance   GB 14048.5-2008, IEC 60947-5-1
 Degree of Protection  IP65

MODEL  POSITION DESCRIPTION
KY-SA2-OR 2 POSITION KEY REMOVABLE IN ONE POSITION
KY-SA2-BR 2 POSITION KEY REMOVABLE IN BOTH POSITION
KY-SA3-CR 3 POSITION KEY REMOVABLE IN CENTER POSITION
KY-SA3-CR-SR 3 POSITION SPRING RETURN WITH KEY REMOVABLE IN CENTER POSITION
